Ford GT Half-Scale Replica: Part 3

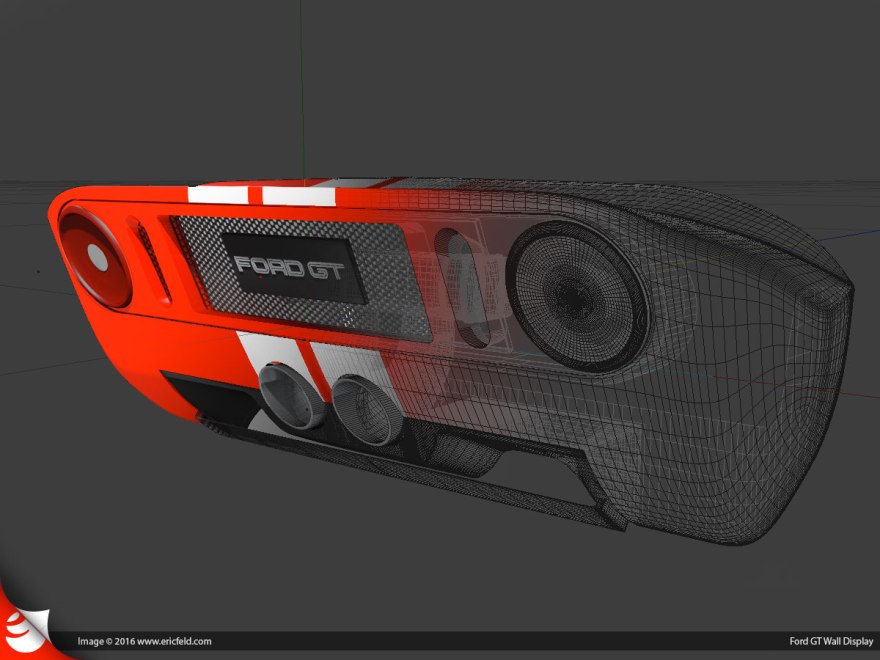

Since I decided to thermo-form the Ford GT body, I wanted to work out the kinks in a small scale version before I invested in large scale. The capacity of my current thermo-forming platen is roughly 22″x16″, so I would scale down my 3D model to accommodate the forming platen. That meant going back into Cinema 4D and planning for slicing the model apart into several pieces to be machined that would ultimately fit back together like a puzzle. My biggest concern with the GT body was forming the top of the rear rear body, where the engine bay meets the body panel. There’s a very distinct edge that needs to be formed and I wasn’t sure if the vacuum would pull the plastic into all the various contours of the body.

Next stage…..building a large thermo forming machine to accommodate the ½ scale size of the Ford GT….

Check out the pics below for a some progress shots of the building/forming process. Enjoy!
